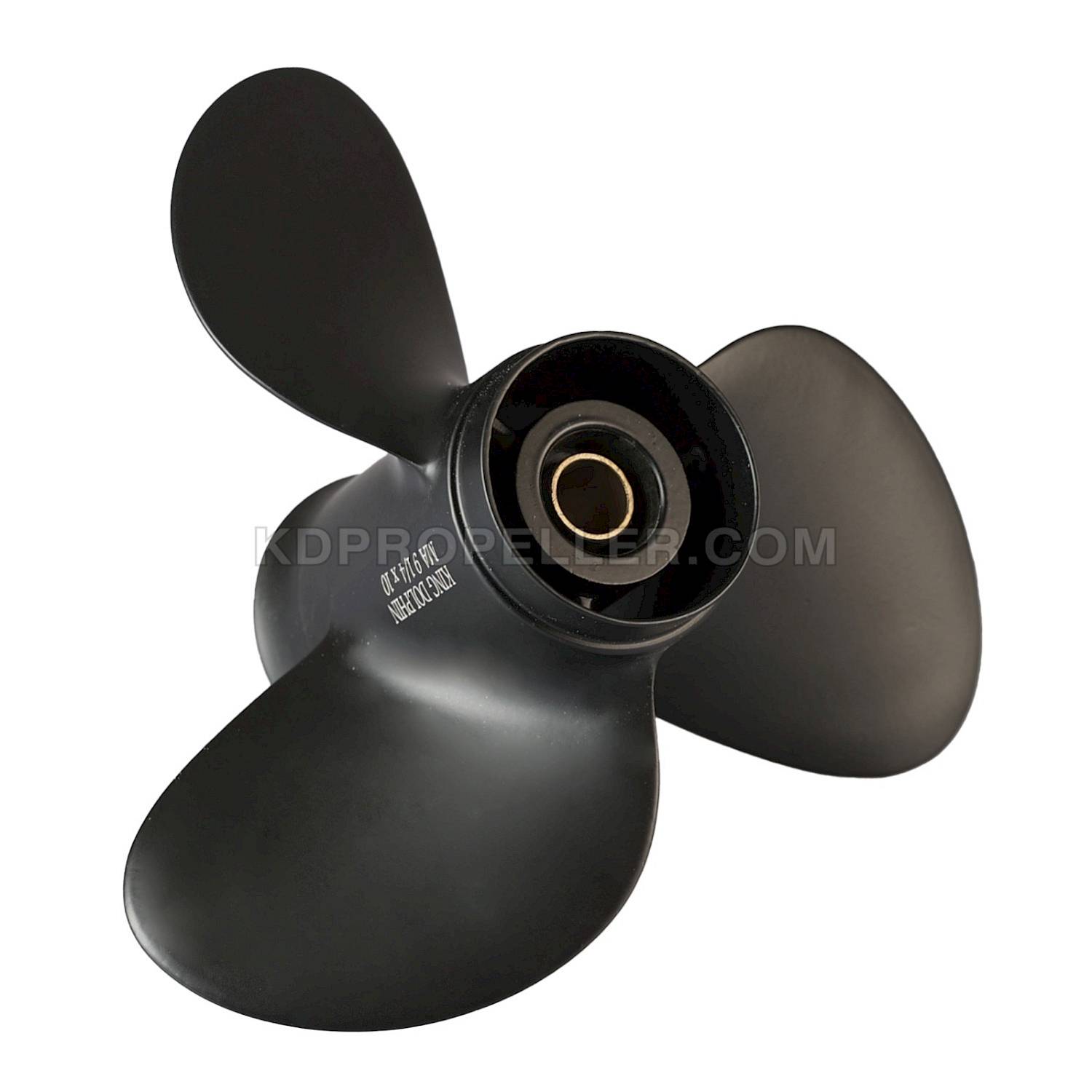

KDP 7X High-Strength Alloy 3-Blade Mercury Outboard Propeller RH - A Class (SOLAS 1111-093-12)
Part #: 5111-093-110
Hub Type: Pressed-in
KDP Model: 7x Series
Class: A
# of Blades: 3
Rotation: Right
Dimensions: A 9-1/4 x 11
Horsepower: 0 - 20 hp
Engines: Mercury
KDP 7X SERIES HIGH-STRENGTH ALLOY MERCURY OUTBOARD PROPELLER (A CLASS) - Pressed in Rubber Hub
SKU #5111-093-110
REPLACES PROPELLER OEM P/N(S):
- SOLAS 1111-093-12
KDP PROPELLER SPECIFICATION INFORMATION
KDP Propeller p/n: #5111-093-110
KDP Propeller Series: 7X High-Strength Alloy
Propeller Class: A (2-1/2" Gearcase)
Horsepower Range: 6 - 15hp
Propeller Diameter: 9-1/4"
Pitch: 11"
Number of Blades: 3
Rotation: RH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Hub Type: Pressed In Rubber Hub
Number of Splines: 8
Outboard Engine: MERCURY
MERCURY COMPATIBLE ENGINE MODELS (2-1/2" Gearcase):
| ENGINE TYPE | YEAR |
|---|---|
| 6/8/9.9 HP (2 Stroke) | 1986 to Newer |
| 8/9.9 (4 Stroke - Not Big Foot) | 2002 to 2004 |
| 10HP | 1995 to Newer |
| 10/15 HP (Sea Pro / Marathon) | 1995 to 2001 |
| 15HP (2 & 4 Stroke) | 1989 to 2006 |
| (Force) 9.9 & 15HP | 1996 to 1998 |
