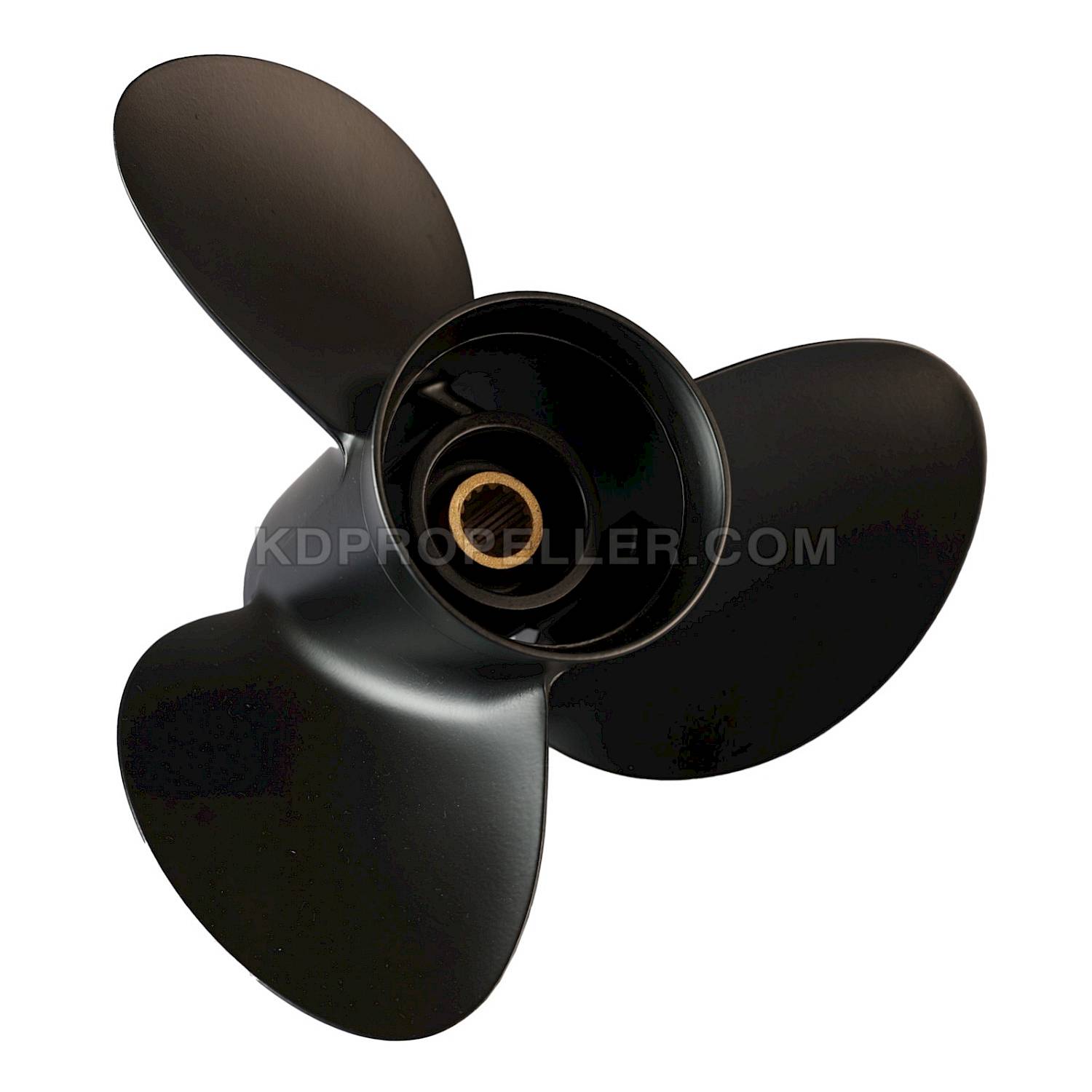

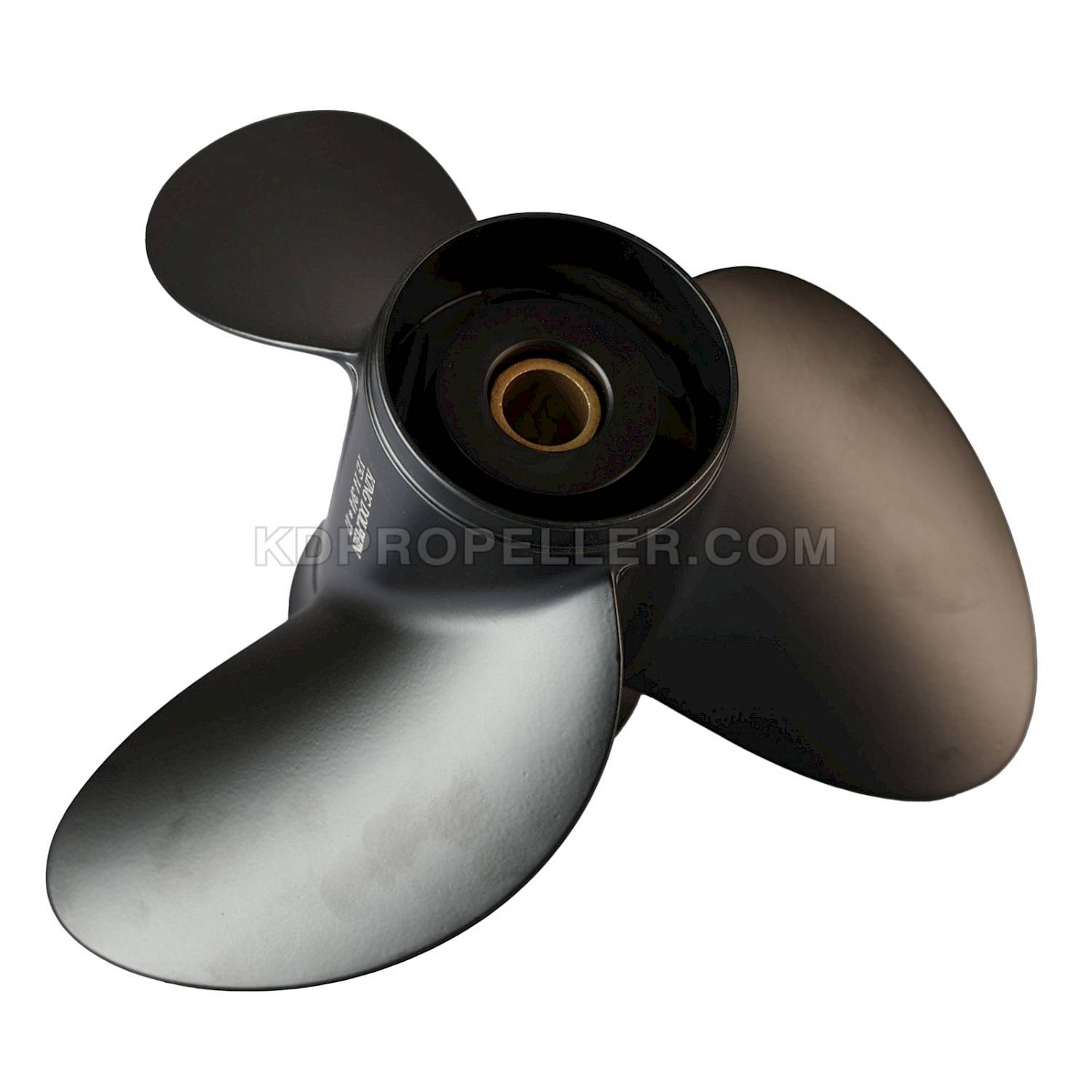

KDP 7X High-Strength Alloy Yamaha General 3-Blade Outboard Propeller RH - E Class (Yamaha 6G5-45949-00 (M), 6G5-45943-01-98, SOLAS 3511-143-21)
Part #: 1511-143-210
Hub Type: Pressed-in
KDP Model: 7x Series
Class: E
# of Blades: 3
Rotation: Right
Dimensions: E 14-1/4 x 21
Horsepower: 130 - 300 hp
Engines: Yamaha
KDP 7X SERIES HIGH-STRENGTH ALLOY YAMAHA OUTBOARD "GENERAL BLADE" PROPELLER - RH (E CLASS) - Pressed in Hub, General Blade
NOTE: If you are currently using a Yamaha OEM blade style propeller, we recommend using a 2-Pitch lower KDP propeller
SKU #1511-143-210
REPLACES PROPELLER OEM P/N(S):
- YAMAHA 6G5-45949-00 (M)
- YAMAHA 6G5-45943-01-98
- SOLAS 3511-143-21
KDP PROPELLER SPECIFICATION INFORMATION
KDP Propeller p/n: #1511-143-210
KDP Propeller Series: High-Strength Alloy
Propeller Class: E (4-3/4" Gearcase)
Horsepower Range: 150 - 250hp
Propeller Diameter: 14-1/4"
Pitch: 21"
Number of Blades: 3
Rotation: RH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Hub Type: Pressed In Rubber Hub
Number of Splines: 15
Outboard Engine: YAMAHA
YAMAHA COMPATIBLE ENGINE MODELS (4-3/4" Gearcase):
| ENGINE TYPE | YEAR |
|---|---|
| F150 (4 Stroke) | 2004 to Newer |
| F175 (4 Stroke) | 2014 to Newer |
| F200 (4 Stroke) | 2002 to Newer |
| F225 (4 Stroke) | 2002 to Newer |
| F250 (4 Stroke) | 2002 to Newer |
| F300B (4 Stroke) | 2010 to Newer |
| VF200V-MAX SHO | 2010 to Newer |
| VF225V-MAX SHO | All |
| 150hp - 250hp (2 Stroke) | All Models |
