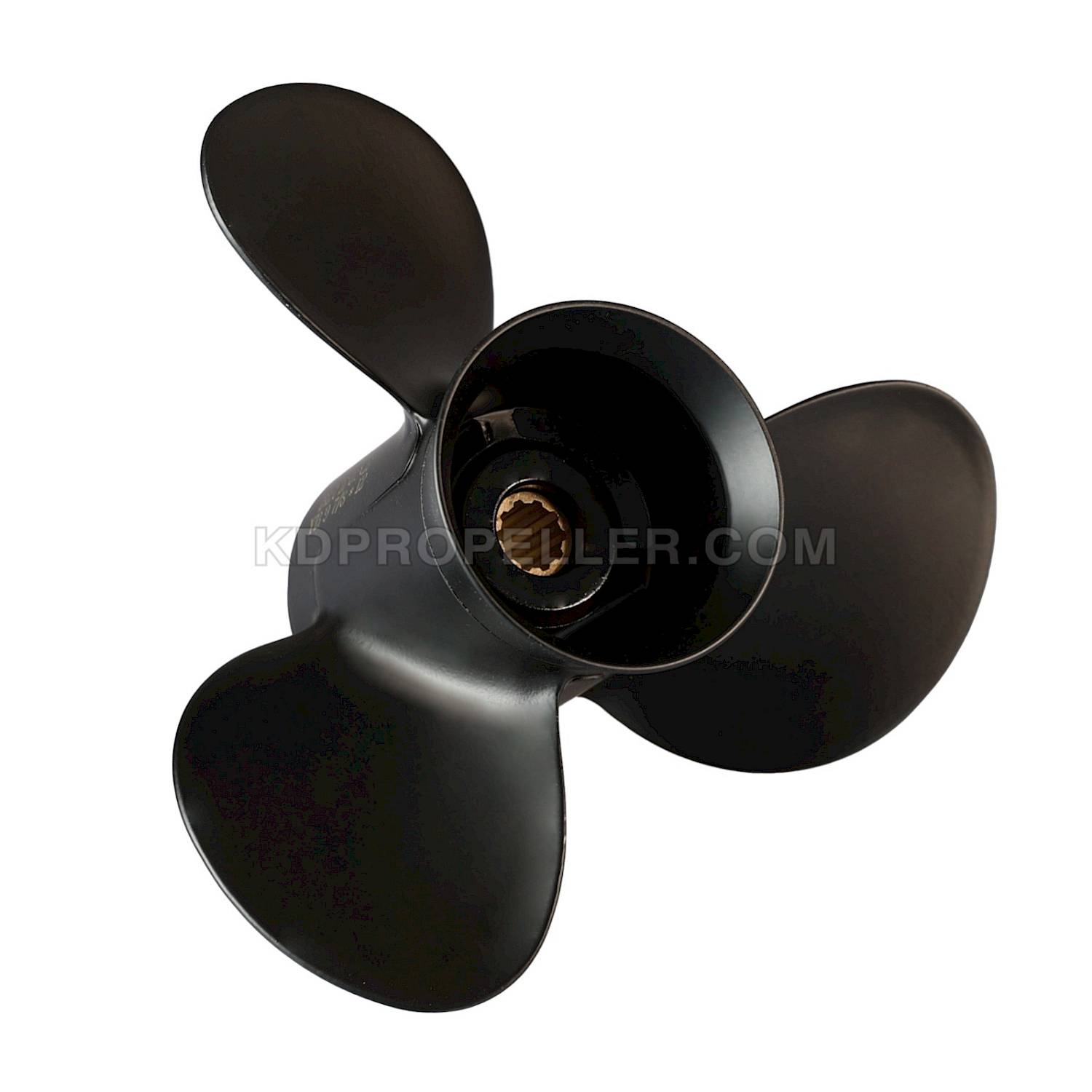

KDP 7X High-Strength Alloy 3-Blade Mercury Outboard Propeller RH - B Class (SOLAS 3211-099-11)
Part #: 1211-099-110
Hub Type: Pressed-in
KDP Model: 7x Series
Class: B
# of Blades: 3
Rotation: Right
Dimensions: B 9-7/8 x 11
Horsepower: 20 - 30 hp
Engines: Mercury
KDP 7X SERIES HIGH-STRENGTH ALLOY MERCURY OUTBOARD PROPELLER (B CLASS) - Pressed in Rubber Hub
Note: KDP Mercury Class B is the same as KDP Yamaha Class B (Japan Origin)
SKU #1211-099-110
REPLACES PROPELLER OEM P/N(S):
- SOLAS 3211-099-11
KDP PROPELLER SPECIFICATION INFORMATION
KDP Propeller p/n: #1211-099-110
KDP Propeller Series: 7X High-Strength Alloy
Propeller Class: B (3" Gearcase)
Horsepower Range: 20 - 30hp
Propeller Diameter: 9-7/8"
Pitch: 11"
Number of Blades: 3
Rotation: RH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Hub Type: Pressed In Rubber Hub
Number of Splines: 10
Outboard Engine(s): MERCURY, YAMAHA (Japan Origin)
MERCURY COMPATIBLE ENGINE MODELS (3" Gearcase):
| ENGINE TYPE | YEAR |
|---|---|
| 25HP | 1980 to 1984 |
| 28HP | 1976 to 1979 |
| 30HP | 1979 to 1990 |
YAMAHA COMPATIBLE ENGINE MODELS (3" Gearcase):
| ENGINE TYPE | YEAR |
|---|---|
| F20D (4 Stroke) | 2018 to Newer |
| F25D/G15 (4 Stroke) | 2010 to Newer |
| 20hp (2 Stroke) | 1996 to 1997 |
| 25hp (2 Stroke) | 1980 to Newer |
| 30hp (2 Stroke) | 1979 to 2002 |
